Embragues neumáticos
|

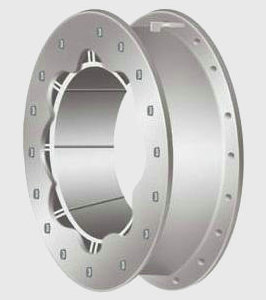

Embragues neumáticos (Pneumatic tube clutch)
The spirit moves the clutch with compressed air for friction clutch that manipulate the motive source.Used for needing to be delivered the big torque generally with turn round the directional equipments with the fast a transformation last such as the petroleum artesian well machine ships large machine pressure machine scoop out the machine ball whet machine rubber machine etc..
The Pneumatic tube clutch delivers to torque big join together steady easy to install the absorb librate can compensate a little amount lord from move the stalk Cape face with path face opposite be partial to move from move part  inertial and small service life long construction tightly packed seal completely ** good.The Pneumatic transforms the resistance big the Pneumatic material cost is high usage temperature contain certain restrict higher than 60 ℃ will lower the Pneumatic life span lower than-20 ℃ make the Pneumatic change the frailty easily.The spirit moves the clutch coalescence a main adoption rubs slice rub an etc..
Pneumatic type clutch according to its construction form of different can is divided into the common type again is two kinds of with well ventilated type.
1) common type
Depending the Pneumatic delivers to torque the construction is simple make and installing the technique request to be low thermolysis would be better to not as good as ventilated type the Pneumatic capacity is bigger the aeration and deflate time longer easy is slippery.
2) Ventilated type
Aim at the not enough an a kind of spirit for but developping clutch in common type increased on the construction a set of spread the heat spread it can equip.
Common type Embragues neumáticos
| Model |
JW300/100 |
JW400/125 |
JW500/125 |
JW600/125 |
JW700/200 |
CBC700/135 |
JW800/135 |
| Figure No. |
115.101.00 |
115.104.00 |
115.102.00 |
115.105.00 |
115.103.00 |
115.107.00 |
T14-013-00 |
| Speednr/min |
Limit |
2332-2667 |
1980-1765 |
1642-1877 |
1652-1547 |
1315-1504 |
1198-1450 |
1099-1328 |
| Rated |
1348-1542 |
986-1142 |
949-1085 |
781-894 |
760-869 |
687-881 |
635-768 |
| TorquemN.m |
Limit |
3080-4030 |
7061-10030 |
10455-13670 |
14810-19360 |
33080-43270 |
22350-32660 |
28850-42160 |
| Rated |
2025-2686 |
6521-8430 |
6790-9114 |
9875-12908 |
22060-28850 |
14900-21775 |
19230-28080 |
| Working pressure,Mpa |
0.7-0.9 |
0.6-1.0 |
0.7-0.9 |
0.7-0.9 |
0.7-0.9 |
0.7-1.0 |
0.7-1.0 |
| Tire volume of gas,L |
1.3 |
2 |
5.5 |
5.5 |
17 |
2-4 |
2.4-5 |
| Friction Wheel,Diameter(mm) |
296 |
400 |
497 |
597 |
695 |
696 |
796 |
| Connection size,mm |
Flange diameter |
450 |
600 |
720 |
820 |
1000 |
900 |
1015 |
| Flange Broadband |
115 |
168 |
154 |
154 |
246 |
176 |
176 |
| Location Diameter |
450h11 |
|
720h11 |
820h11 |
1000h11 |
900h11 |
1015H11 |
| The number and diameter of screw |
12-Ф13h12 |
|
12-Ф17H12 |
16Ф17H12 |
12Ф17H12 |
20-Ф17H12 |
18-1Ф12H |
| Bolt hole diameter distribution |
430 |
576 |
690 |
790 |
950 |
870 |
975 |
| Intake pipe thread |
M20*1.5 |
M20*1.5 |
M20*1.5 |
M20*1.5 |
M33*1.5 |
2-M20*1.5 |
2*M20*1.5 |
Ventilated type Embragues neumáticos (1)
| Model |
JW300/200 |
JW500/250 |
JW600/250 |
JW700/250 |
DY700/135 |
JW800/135 |
JW800/250 |
| Figure No. |
G301.21.00 |
T14-014-00 |
G301.22.00 |
AF2400.02.01.00A |
115.31.00 |
115.28.00 |
115.29.00 |
| Speednr/min |
Limit |
1312-1578 |
1586-1701 |
1281-1544 |
|
1569-1890 |
1016-1224 |
1016-1224 |
| Rated |
758-912 |
916-983 |
740-892 |
|
907-1092 |
587-707 |
587-707 |
| TorquemN.m |
Limit |
17110-24970 |
23390-26900 |
32200-46710 |
54767-40207 |
24560-35360 |
54240-78660 |
54240-78660 |
| Rated |
11406-16646 |
15590-17930 |
21466-31140 |
32100-47300 |
16170-23750 |
36160-52440 |
36160-52440 |
| Working pressure,Mpa |
0.7-1.0 |
0.7-0.8 |
0.7-1.0 |
0.7-1.0 |
0.7-1.0 |
0.7-1.0 |
0.7-1.0 |
| Tire volume of gas,L |
13*2 |
3-5 |
2*2 |
2.28*2 |
24 |
2.66*2 |
2.66*2 |
| Friction Wheel(Diameter,mm) |
496 |
496 |
596 |
696 |
696 |
796 |
796 |
| Connection size,mm |
Flange diameter |
780 |
750 |
890 |
1010 |
935 |
1115 |
1115 |
| Flange Broadband |
234 |
288 |
284 |
292 |
200 |
300 |
300 |
| Location Diameter |
Ф300H8 40H8*80 |
Ф750F9 |
Ф340H8 40H8*100 |
Ф240 0.072 |
Ф360H10 |
Ф350H8 40H8*100 |
Ф1105F9 |
| The number and diameter of screw |
10-Ф 18H10 |
12-Ф 18H10 |
12-Ф 23H10 |
8-Ф 32H10 |
16-Ф 22H10 |
10-Ф22H10 |
16-Ф 22H10 |
| Bolt hole diameter distribution |
360 |
720 |
420 |
300 |
400 |
420H8 |
1070 |
| Intake pipe thread |
2-G1/2 |
2-M20*1.5 |
2-G1/2 |
2-G1/2 |
1-M20*1.5 |
2-G1/2 |
2-G1/2 |
Ventilated type Embragues neumáticos (2)
| Model |
JW900/250 |
JW1070/200 |
JW1170/250 |
JW1120/300 |
JW1250/300 |
JW965*305 |
JW1168*305 |
| Figure No. |
ZB1.05.00 |
115.01.00 |
115.02.00 |
G301.25.00 |
G301.26.00 |
115.33.00 |
115.34.00 |
| Speednr/min |
Limit |
903-1087 |
932-1123 |
765-820 |
|
|
|
|
| Rated |
522-628 |
539-668 |
442-474 |
|
|
|
|
| TorquemN.m |
Limit |
68000-98930 |
84600-122670 |
117740-134130 |
|
|
|
|
| Rated |
45467-65953 |
56400-81790 |
78490-89420 |
123000-175500 |
153000-218000 |
|
|
| Working pressure,Mpa |
0.7-1.0 |
0.7-1.0 |
0.7-0.8 |
0.7-1.0 |
0.7-1.0 |
0.7-0.9 |
0.7-0.9 |
| Tire volume of gas,L |
3*2 |
3 |
5.7 |
3.96*2 |
4.4*2 |
6 |
11 |
| Connection size,mm |
Flange diameter |
1230 |
1400 |
1500 |
1450 |
1580 |
1254 |
1530 |
| Flange Broadband |
292 |
260 |
302 |
357 |
357 |
358 |
360 |
| Location Diameter |
Ф1220-0.42 |
Ф1400h11 |
Ф1500h10 |
Ф840H8 |
Ф1050H8 |
Ф635H10 |
|
| 60H8*100 |
60H8*90 |
| The number and diameter of screw |
16-Ф22H10 |
12-Ф27H10 4-Ф25H8 |
12-Ф27H10 |
20-Ф23H10 |
16-Ф25H10 |
20-Ф23H8 |
24-Ф23 4-Ф16 |
| Bolt hole diameter distribution |
1184 |
1350 |
1445 |
890 |
1110 |
1215 |
1486 |
| Intake pipe thread |
2-G1/2 |
2-M33*1.5 |
2-M33*1.2 |
2-G1/2 |
2-G1/2 |
2-2G3/4 |
2-2G3/4
|
|
|
|
|
|
|
|
